PLATFORM · SCALE & PERFORMANCE
Built to stay fast when the deployment gets large.
Sentinel is engineered for scale from the data model up: a distributed multi-agent architecture, covering indexes that answer the heaviest queries in a single scan, and bounded queries that keep the console responsive as event counts climb into the millions.
Click to enlargeThousands of cameras · Millions of events · Sub-50 ms core queries at 1.2 M events (tested) · Distributed multi-agent
One console over thousands of cameras and millions of events.
The same console runs a single entrance camera or a five-thousand-camera estate without a different code path — designed and tested for the full range, with search, sort, and pagination on every surface.
- Designed and tested for 1 to 5,000 cameras per deployment — no UI degradation
- Event data in purpose-built tables engineered for tens of millions of rows — never bolted onto backup tables
- Distributed by design — processing pushed to edge agents; the console never pulls raw video to do its job
- No unbounded surfaces — every list has search, sort, and pagination throughout
- The same product at every size — no enterprise-edition fork

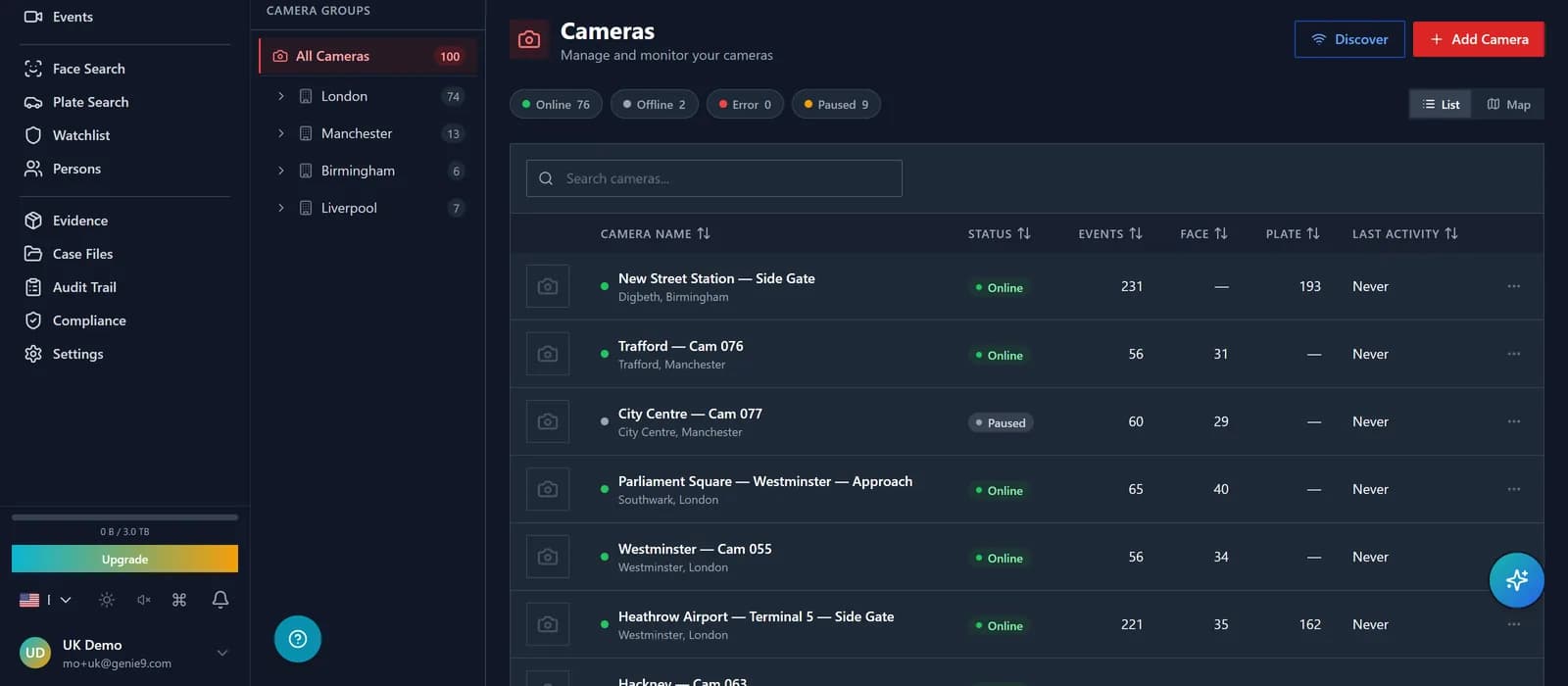

Click to enlargeFive thousand cameras is unusable as a flat list — the tree makes it navigable.
One dashboard. 100+ agents. Work pushed to the edge.
Each agent pulls and decodes video locally, runs the AI close to the cameras, and reports compact events to the console — adding capacity is as simple as adding an agent, coordinated by lightweight version-string heartbeats.
- 100+ agents per console — each handles a subnet; events, alerts, and status aggregated in real time
- Edge processing — video decoded and analysed where the cameras are, eliminating cross-network video traffic
- Lightweight heartbeats — version strings and queued commands only; no full config payloads on every tick
- Zero-downtime scaling — add or remove agents without affecting the rest of the deployment
- FOR UPDATE SKIP LOCKED worker queue — multiple workers share load with no Redis or etcd dependency

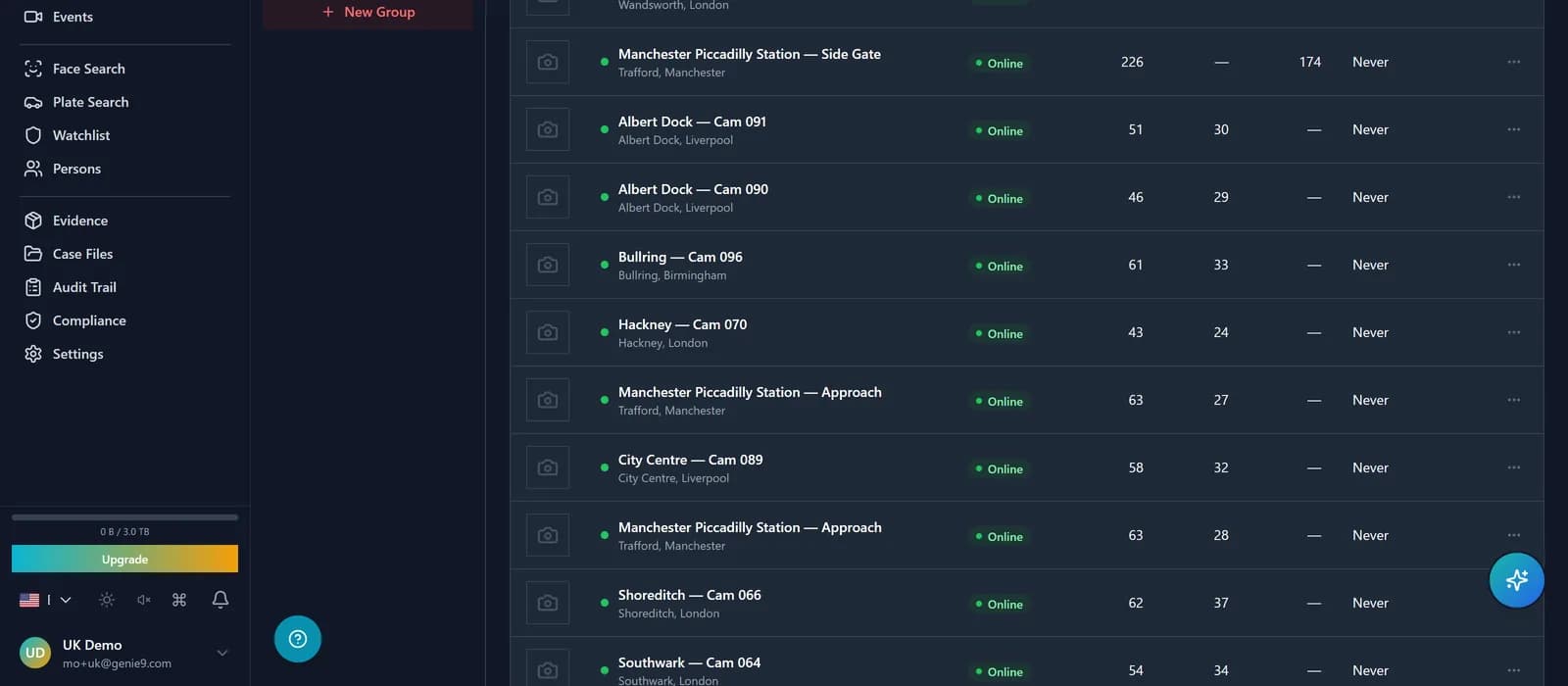

Click to enlargeOne console coordinates the whole fleet; raw video never needs to cross the network.
BENCHMARKED PERFORMANCE
Measured at 1.2 M events, not promised.
On a benchmark dataset of 1.2 million event rows and a million audit-log rows — the kind of history a busy estate accumulates — the queries an operator hits most stay under 50 milliseconds. Every one of these surfaces has a specific index or query pattern engineered to make it fast at that scale.
| Persons query (tested) | < 50 ms — at 1.2 M events on the benchmark dataset |
| Watchlist query (tested) | < 50 ms — at 1.2 M events |
| Command Center (tested) | < 50 ms — at 1.2 M events |
| Heatmap aggregation (tested) | < 50 ms — single covering-index scan at 1.2 M events |
| Audit dashboard (tested) | < 100 ms — raw SQL + covering indexes at 1 M audit rows |
| Persons list + enrichment (tested) | < 200 ms — 1,000 persons with full enrichment |
| Last measured | 2026-03-19, benchmark dataset (tested results / design targets, not customer counts) |
THE ENGINEERING BEHIND IT
Fast is a property you build in, on purpose.
Covering indexes
The heaviest queries are answered from the index alone, no row fetch. Composite covering indexes on the event table handle per-camera timelines, global recent events, type-filtered queries, watchlist feeds, and the live ticker.
pgvector IVFFlat for face kNN
Face search runs against a 512-dimension embedding store with an IVFFlat cosine index — sub-second nearest-neighbour lookups across hundreds of thousands of faces, powering search, watchlist, and auto-clustering.
Anchor caps on heavy joins
The co-occurrence self-join is bounded to a subject's most recent 2,000 events inside a sub-query, so its cost is fixed regardless of lifetime activity. The multi-tenant guard is enforced inside the join.
Parallel top-N + roll-up queries
The location distribution runs two queries in parallel: a top-N camera bucket list and a single-row roll-up for the totals, with the long tail sized arithmetically instead of materialising every camera.
Soft-fail per enrichment
Each non-essential sub-query is wrapped in its own try/catch. If pgvector is briefly unreachable, the MySQL counts still return. A partial outage degrades one field, never the whole page.
Bounded everywhere
take/limit on every query, batch lookups instead of N+1, no COUNT(*) over 100K+ rows, and parameterised IN lists so a batch sparkline for 200 entities is one round-trip, not 200.
HOW IT WORKS
From camera to query result, kept fast at every hop.
Process at the edge
Agents close to the cameras decode video and run the full AI vision pipeline locally. What travels to the console is a compact event, not a video stream — so network cost scales with events, not pixels.
Write to purpose-built tables
Events land in dedicated tables engineered for tens of millions of rows — deliberately separate from file-backup tables. Face embeddings go to pgvector; everything else to MySQL.
Index for the questions operators actually ask
Each heavy read has an index or query pattern built for it: composite covering indexes, an IVFFlat cosine index for face kNN, and daily roll-up tables for audit counters so no widget ever runs a full-table scan.
Answer with bounded, defensive queries
Every list paginates; every join is capped; heavy reporting uses raw parameterised SQL to hit a covering index cleanly. Each enrichment soft-fails independently so one slow dependency degrades a single field, not the page.
Serve the console from a warm cluster
The dashboard runs as a multi-instance cluster with reload-not-restart deploys, so traffic spreads across workers and a deploy never drops requests.
SPECIFICATIONS
Full technical specifications
| Cameras (designed / paginated for) | 1 to 5,000 per deployment |
| Agents | 100+ distributed processing nodes per console |
| Events tested | 1.2 M cctv_event rows + 1 M cctv_audit_log rows — benchmark dataset |
| Event store | MySQL — purpose-built tables (cctv_event, cctv_video, …), separate from file-backup tables |
| Event indexing | Composite covering indexes: (cameraId, startTime), (organizationId, startTime), (organizationId, eventType, startTime), watchlist + live-ticker indexes, and a dedicated heatmap covering index |
| Face embedding store | PostgreSQL pgvector — 512-dimension ArcFace embeddings |
| Face kNN index | IVFFlat with cosine distance — sub-second nearest-neighbour over hundreds of thousands of embeddings |
| Heavy-join strategy | Anchor caps (recent-N sub-query), tenant guard inside join, SELECT DISTINCT de-dup |
| Reporting-query strategy | Parallel top-N + single-row roll-up via Promise.all; arithmetic long-tail sizing |
| Resilience pattern | Soft-fail per enrichment — own try/catch → null on failure, WARN-logged, page still renders |
| Pagination | Every list endpoint; take/limit on every query; default 50, max 200 |
| Heartbeat | Version strings + queued commands only; agent refetches config on version change; 10–30 s cadence |
| Worker coordination | FOR UPDATE SKIP LOCKED queue — no Redis/etcd dependency |
| Front-end resilience | AbortController cancels stale in-flight requests on prop change / unmount |
| Storage tiers | Hot (instant) · Cold (6-mo min, 3–5 h restore) · Deep Freeze (12-mo min, 12–48 h restore) |
| Camera organisation | Materialised-path group tree, unlimited depth, sub-tree resolvable in one query |
| Console runtime | Multi-instance cluster (4 Next.js instances), reload-not-restart deploys |
| Deployment targets | Cloud, on-premise, or air-gapped — identical platform at every scale |
All benchmark numbers describe tested results and design targets on a benchmark dataset (last measured 2026-03-19) — not customer counts. You can reproduce them on live data in a demo.
